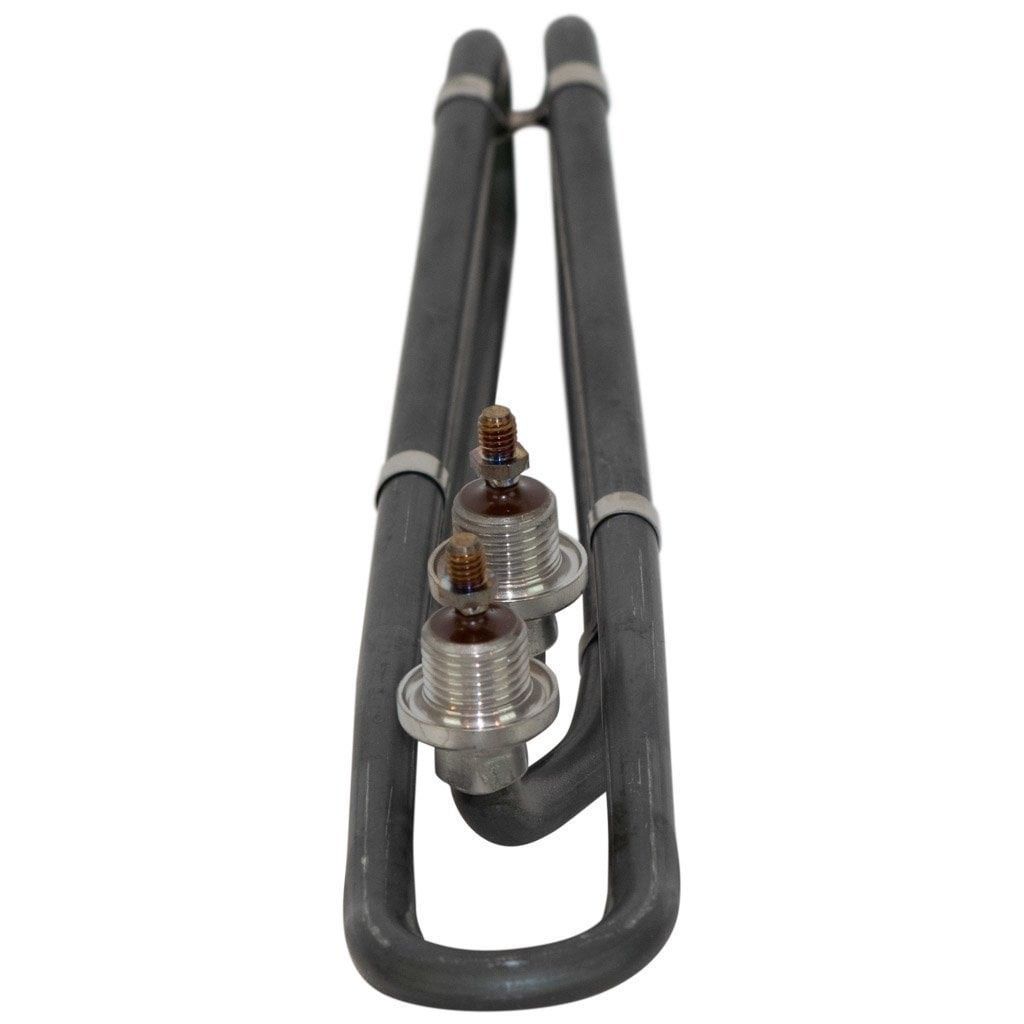

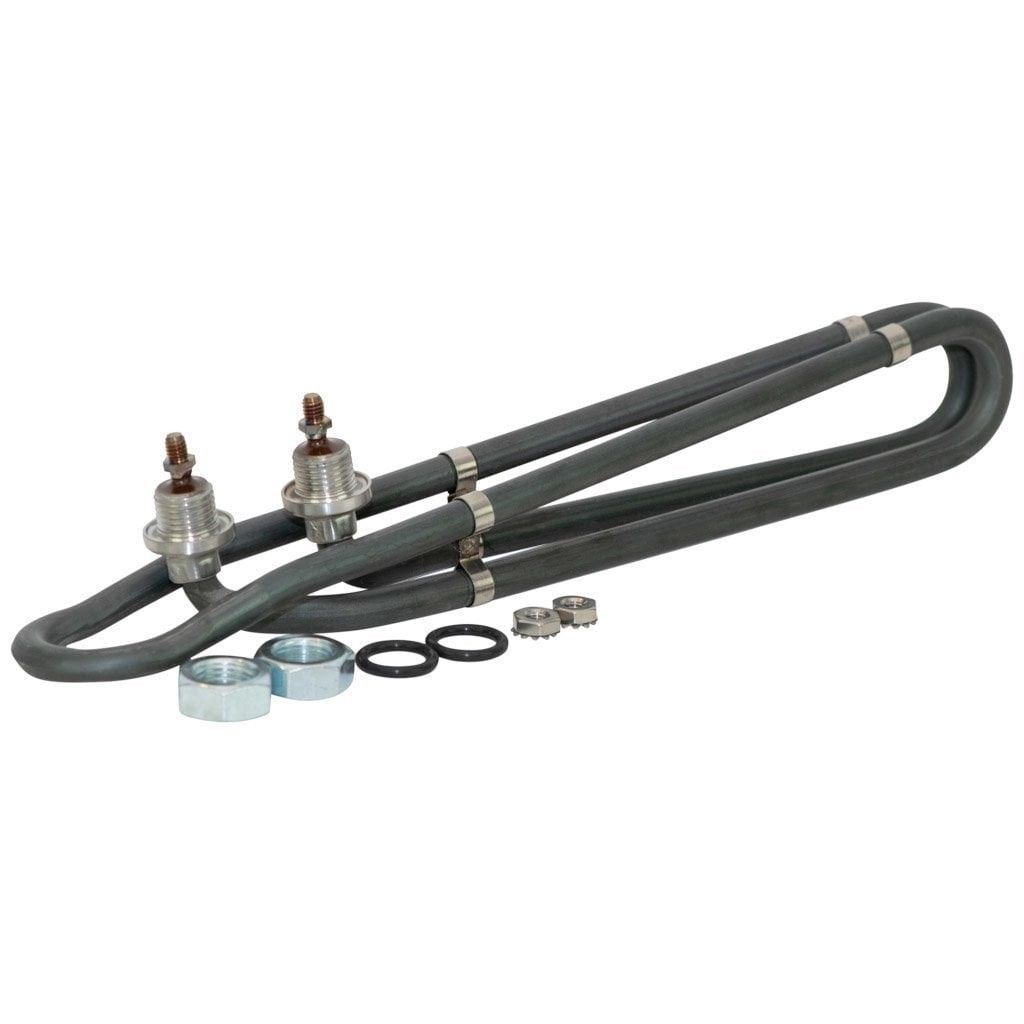

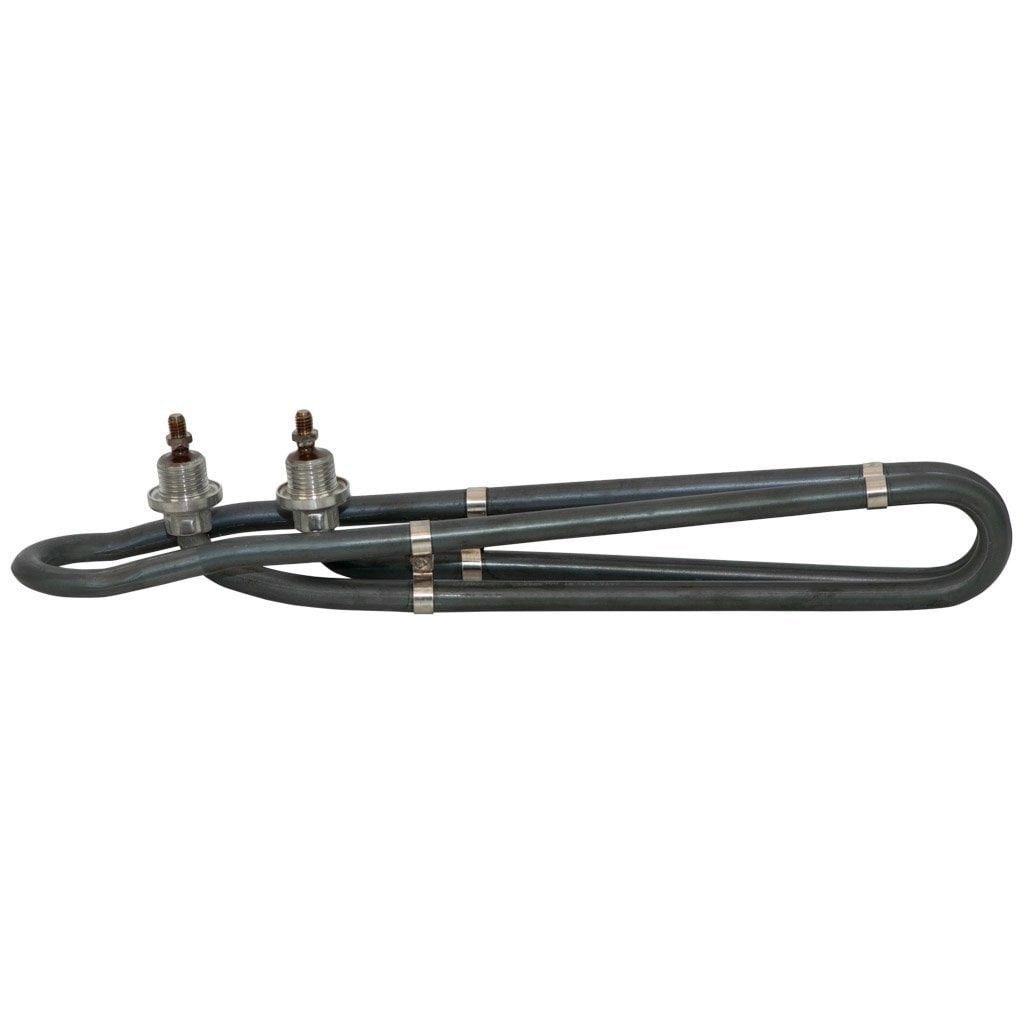

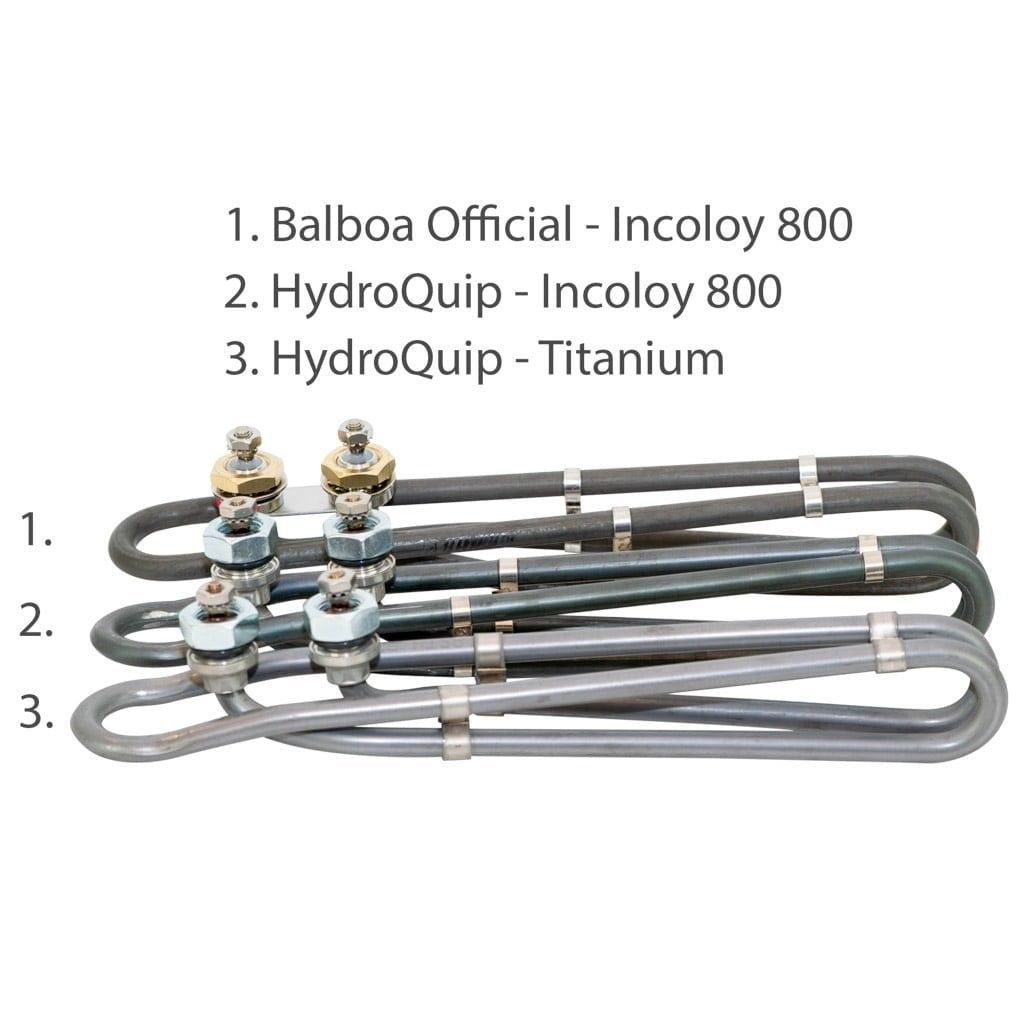

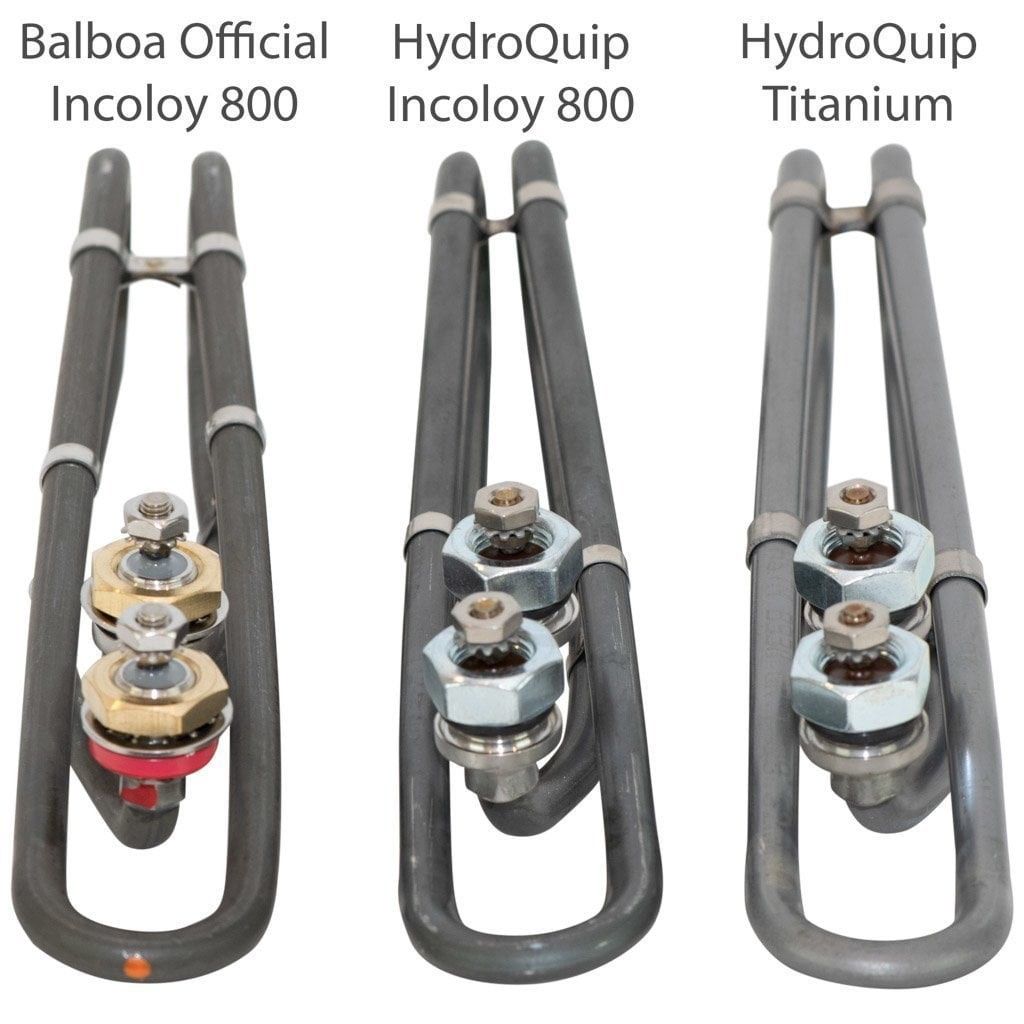

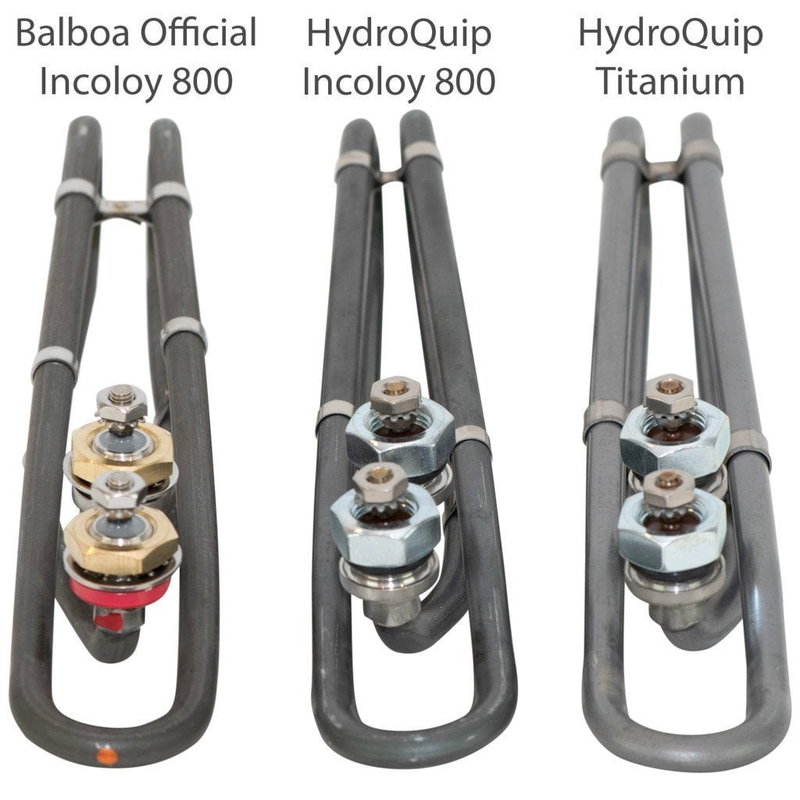

Värmeelement, Incoloy 800, 3.0kW

This Incoloy heater element fits most 15" heaters, including those manufactured by Balboa, Thermcore, Gecko and many others.

If your heater works but there is a slight leak around the point where the terminals enter the tube, you can also try replacing just the o-rings.

Dimensions

Between the heater terminals from center point: 32 mm

Total length: 245 mm

Maximum width: 38 mm

Depth, excluding the terminals: 38 mm

Between the right-hand terminal and the right end: 175 mm

Between the left-hand terminal and the left end: 32 mm

Part numbers

Hydropool : 4535061
