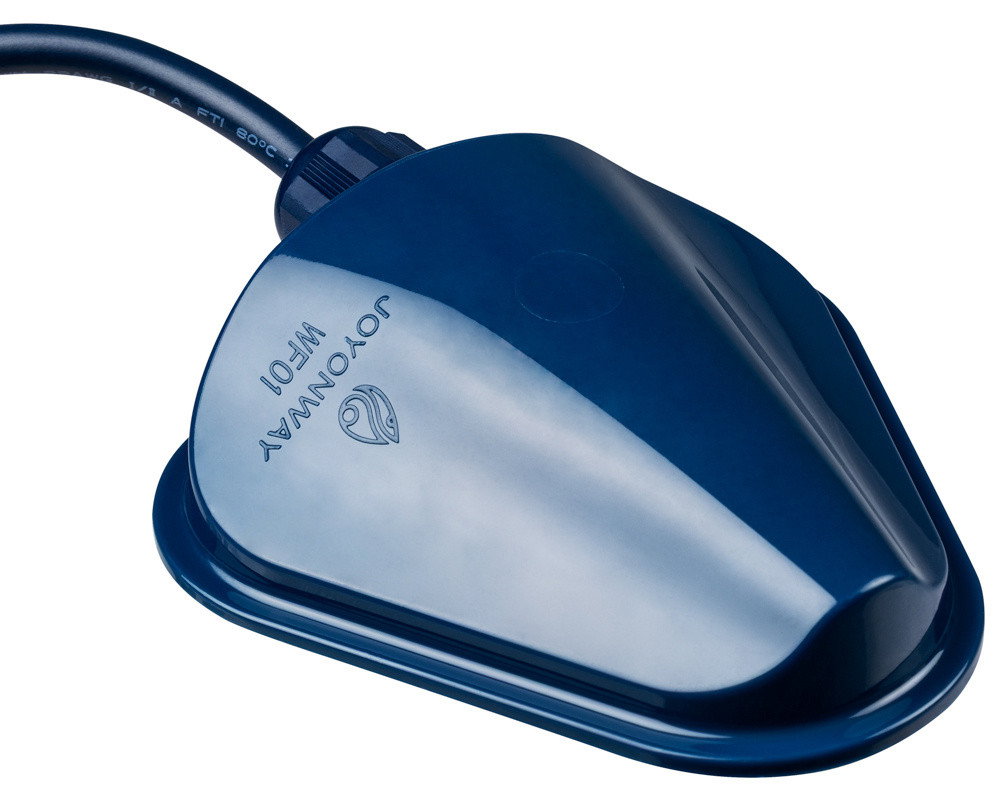

Joyonway WF01 Wifi modul

The Joyonway WF01 is an easy-to-install WiFi receiver module that allows you to remotely control all the main functions of your spa directly from your smartphone or tablet: you can turn pumps on or off, activate the blower, switch on the lighting, adjust the water temperature, or even program filtration cycles.

Through the mobile app (Joyonway-Spa Control), available for free on the App Store and Google Play, you can monitor your spa’s status in real time and receive useful alerts, for example when the temperature changes.

The WF01 connects directly to a compatible Joyonway control system via the dedicated port. Once plugged in, it communicates with your home WiFi network and makes your spa accessible through the mobile app. Installation is quick: simply connect the module and follow the pairing instructions to start controlling your spa remotely.

Compatibility
Joyonway P20B29 and P25B37 control systems

Technical specifications
Power supply: 12 V DC (directly from the control system)
Power consumption: < 1 W
Connection: WiFi 2.4 GHz (not compatible with 5 GHz)
Protection rating: IP65 (protected against water splashes)
Dimensions: 65 × 45 × 15 mm
Cable included: 1 m with RJ connector

Documentation

Technical Documentation
