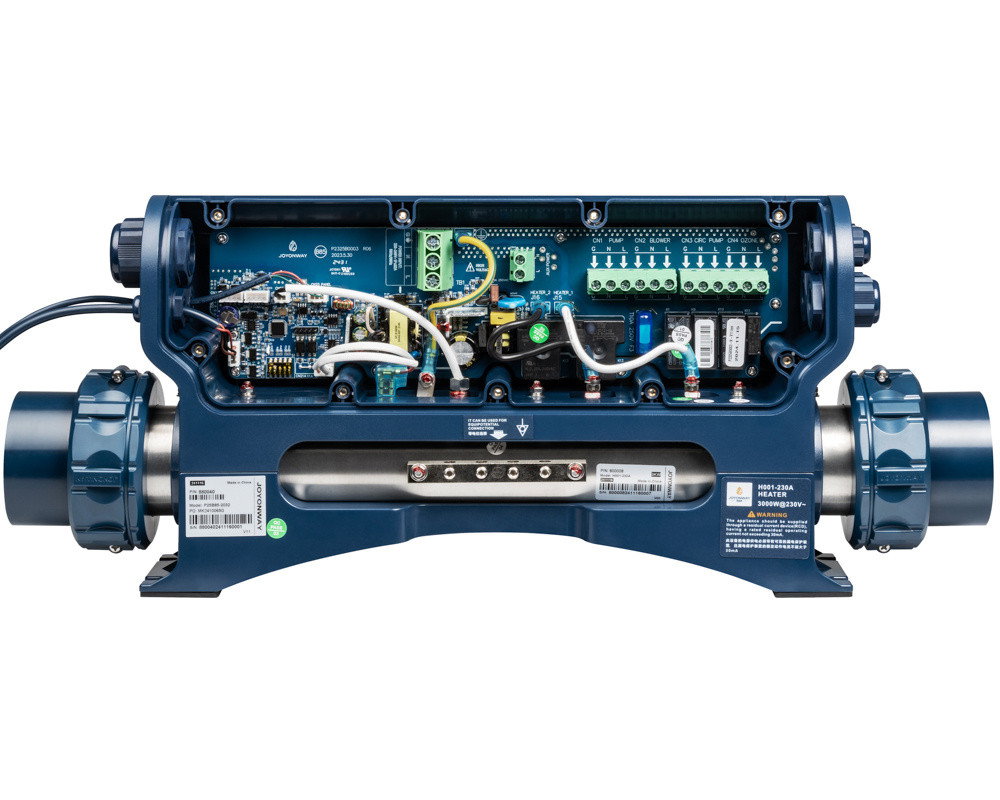

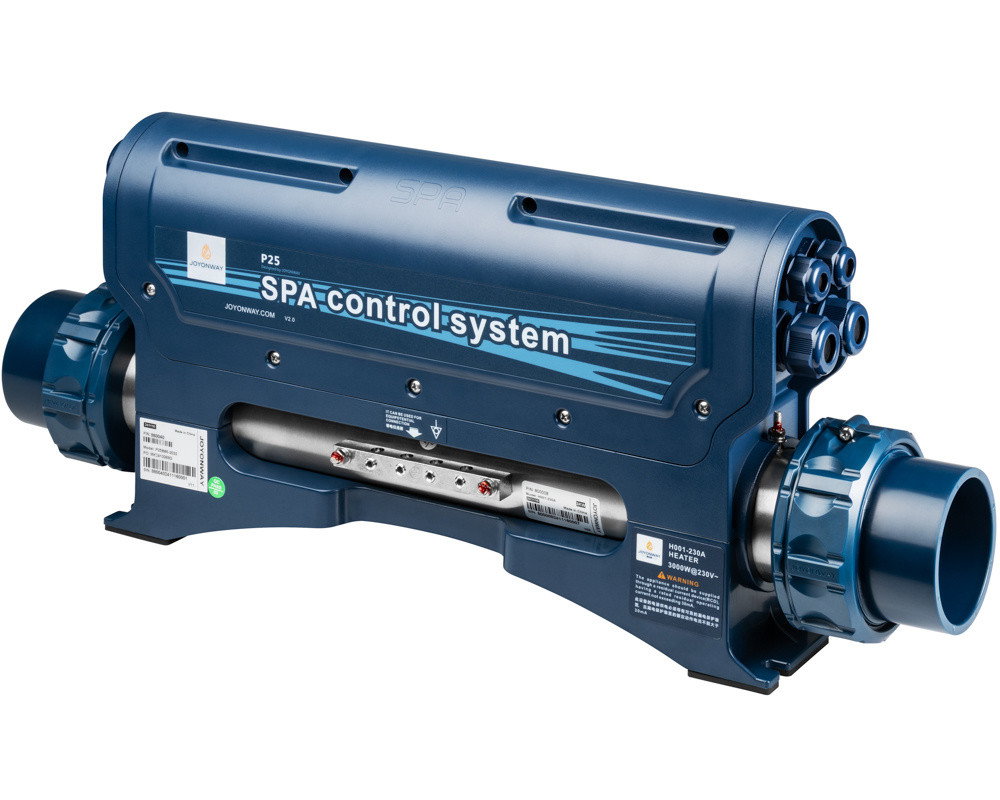

Joyonway P25B85, Styrbox

Compact and efficient, the Joyonway P25B85 control system is designed for easy integration into spas with limited space. Compatible with PB557 and PB559 keypads, it features a 3 kW heater.

The P25B85 is suitable for replacing an identical model, upgrading an existing installation (which also requires a keypad change), or setting up a new configuration. It can manage:

• Two-speed pump OR single-speed pump + circulation pump
• Pump 2 (single-speed) or blower
• Ozonator
• Light
• Auxiliary output

Dimensions
Height: 202 mm
Width: 360 mm (control box without heater), 435 mm (heater with fittings)
Depth: 82 mm
Heater connection: 2-inch (clamping rings and seals included)

Compatible with the following keypads
PB554 and PB559

Warranty
2-year Tubs Parts warranty

Part numbers
Joyonway: P25B85

Documentation

Technical Documentation
