Joyonway Nivåsensor
Liknande produkter
Beskrivning av Joyonway Nivåsensor

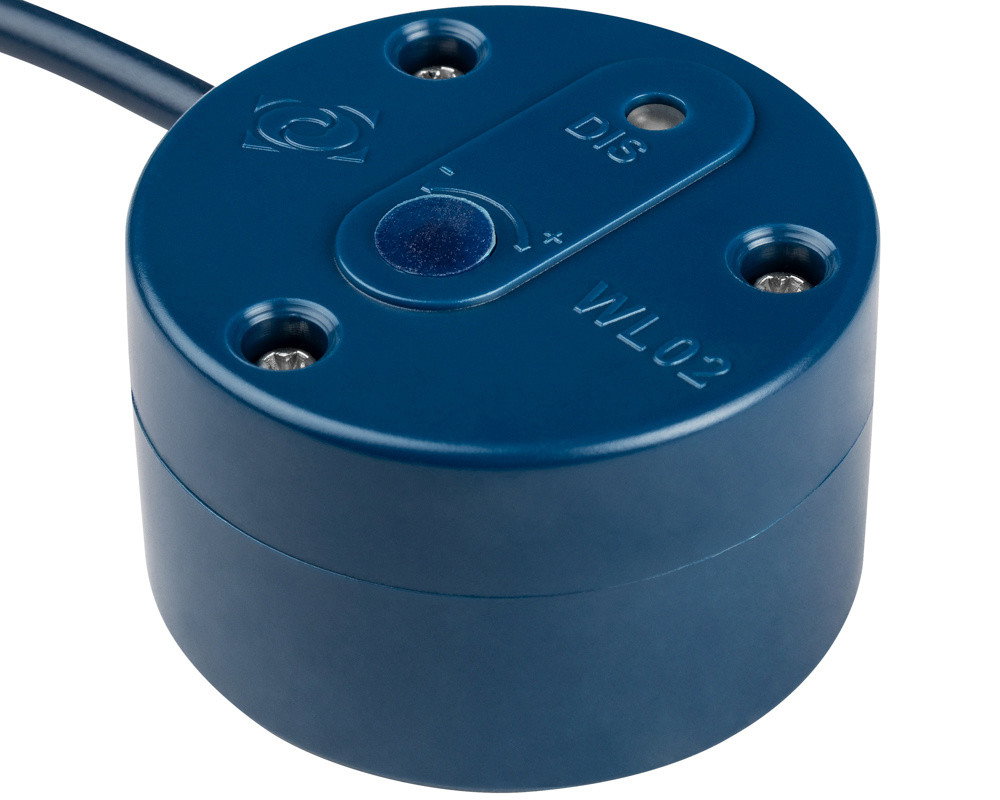

This water level sensor is designed for the Joyonway 17B control box. It is glued under the spa shell at the waterline and detects the presence or absence of water in the tub.
Dimensions
Cable length: 20 cm
Sensor size: Ø 38 mm, thickness 22 mm
Technical specifications
Power supply: 5V DC
Output: “W” terminal of the control box

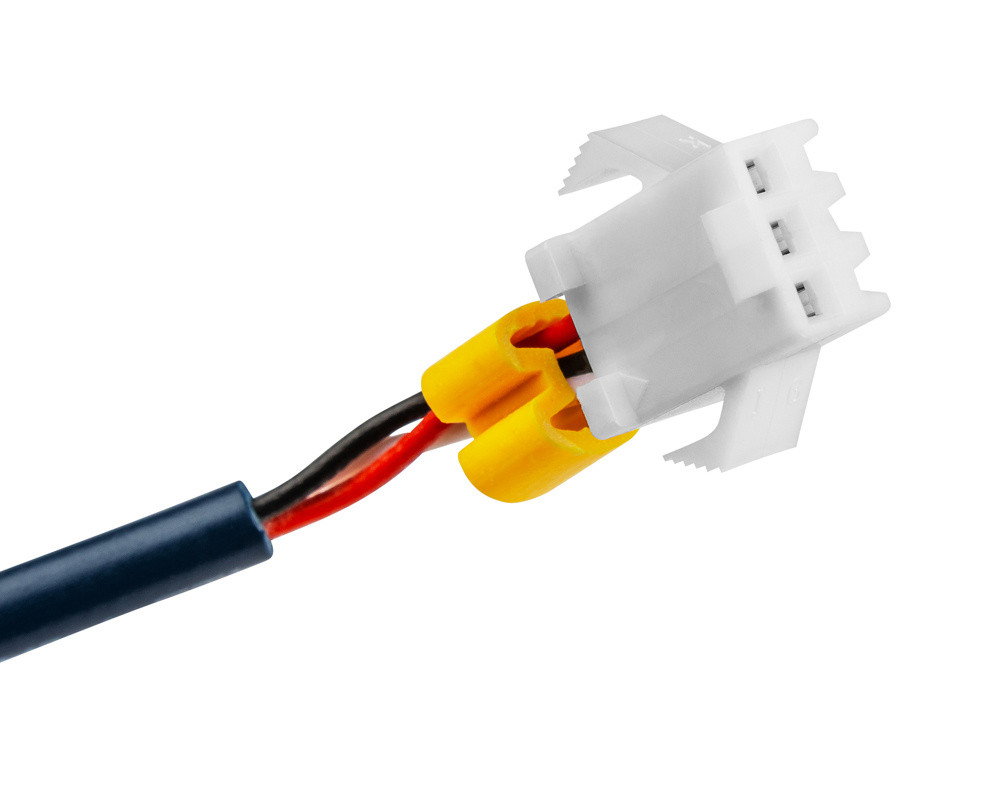

Connector: 3-pin, 3-wire
A red LED on the back of the sensor lights up when water is detected.
Dimensions
Diameter: 38 mm
Height: 22 mm
Part numbers
Joyonway: WL02, 810016
