Joyonway PB555, Styrpanel

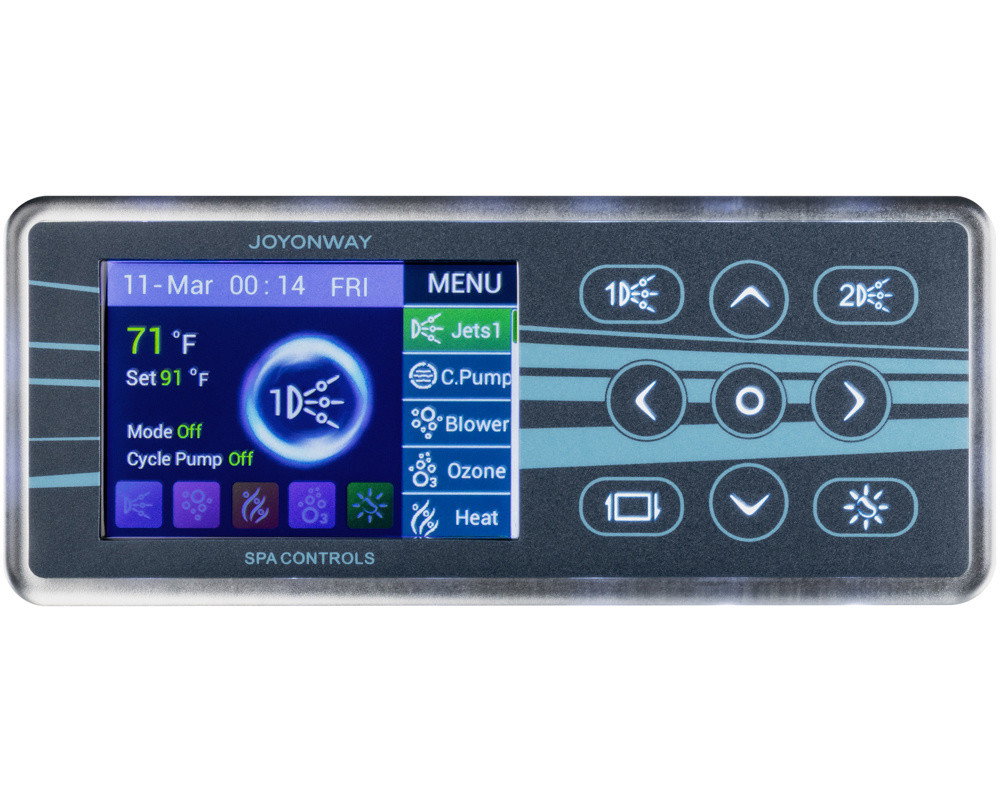

The PB555 from Joyonway is a control keypad designed to integrate with the P68B123, P20B29, P23B32, and P25B37 control systems. Its 3.5-inch color LCD screen displays key spa information in real time, allowing efficient management of essential functions such as water temperature, filtration cycles, operating mode, and heating status.

It also shows the clock and any error codes, making maintenance and diagnostics easier.

Equipped with 9 backlit capacitive touch buttons, the PB555 provides quick access to spa settings:

• Jet 1
• Jet 2
• Navigation keys (up, down, right, left)
• Confirm
• Light
• Screen rotation

The PB555 can be manually installed or removed, simplifying maintenance and replacement. The control system settings can be adjusted directly from the keypad, without requiring access to the control box.

Dimensions
Keypad: 178 x 74 mm
Cut out area: 166 x 62 mm

Compatibility
Joyonway control systems: P68B123, P20B29, P23B32, P25B37

Warranty
2-year Tubs Parts warranty

Part numbers
Joyonway: PB555

Documentation

Techbook
