Beskrivning av Joyonway PB553, Styrpanel

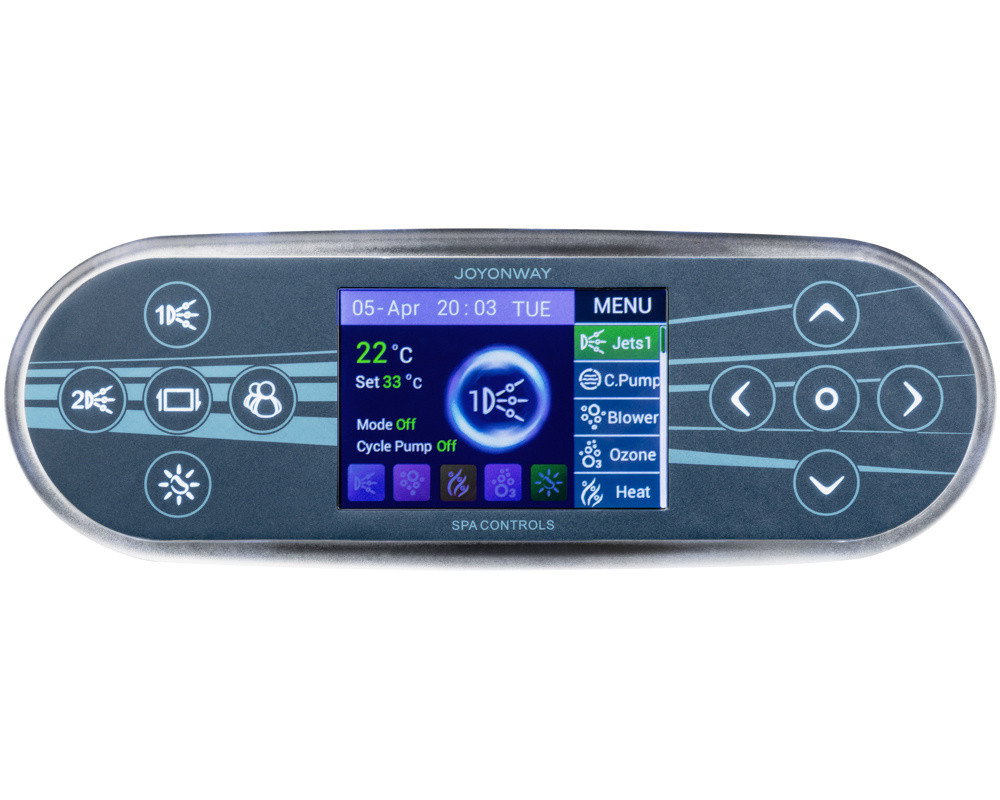

Equipped with a 3.5-inch color LCD screen, the PB553 control panel is compatible with Joyonway P68B123, P20B29, P23B32, and P25B37 control systems. It features 10 backlit touch buttons for quick access to settings:
- Jet 1
- Jet 2
- Light
- Mode Select
- Screen Rotation
- Navigation Pad
The control panel displays the system's main functions in real time, ensuring easy reading and quick parameter adjustments. Thanks to its capacitive buttons, navigation is smooth and responsive. The screen also shows the time and any spa error messages.
The system configuration can be adjusted directly from the control panel, which can be manually installed or removed as needed.
Dimensions
Keypad: 225 x 78 mm
Compatibility
Joyonway control systems: P68B123, P20B29, P23B32, P25B37
Warranty
2-year Tubs Parts warranty
Part numbers
Joyonway: PB553
