Joyonway PB554, Styrpanel
Liknande produkter
Beskrivning av Joyonway PB554, Styrpanel

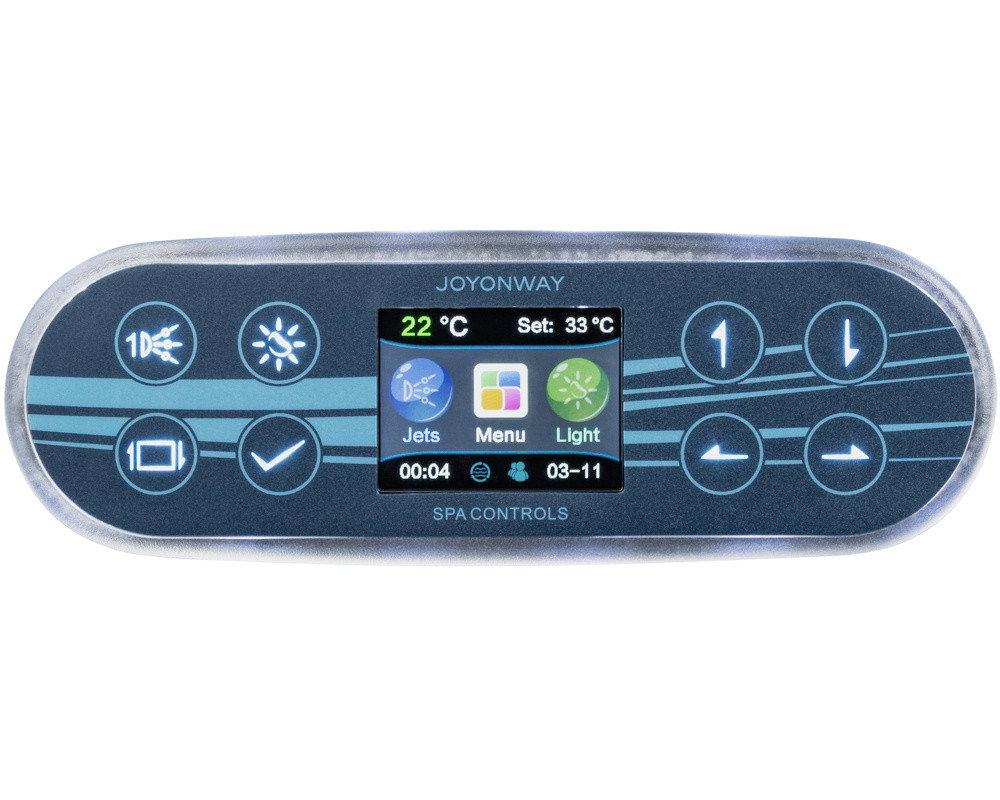

The PB554 from Joyonway is a compact control keypad designed to integrate with the P68B123, P20B29, P23B32, and P25B37 control systems. Its 2-inch color LCD screen provides a clear and intuitive interface for efficient management of key spa functions.
The keypad displays essential system information in real time, including heating status, temperature, operating mode, and filtration cycles. It also allows users to check the clock and any error codes, simplifying maintenance and diagnostics.
Equipped with 8 backlit capacitive touch buttons, the PB554 offers smooth access to spa settings:
- Jet 1
- Light
- Confirm
- Screen Rotation
- Navigation Pad
The PB554 can be manually installed or removed, making maintenance and replacement easier. System configurations can be adjusted directly from the keypad, without needing access to the control box.
Dimensions
Keypad: 170 x 58 mm
Compatibility
Joyonway control systems: P68B123, P20B29, P23B32, P25B37
Warranty
2-year Tubs Parts warranty
Part numbers
Joyonway: PB554
