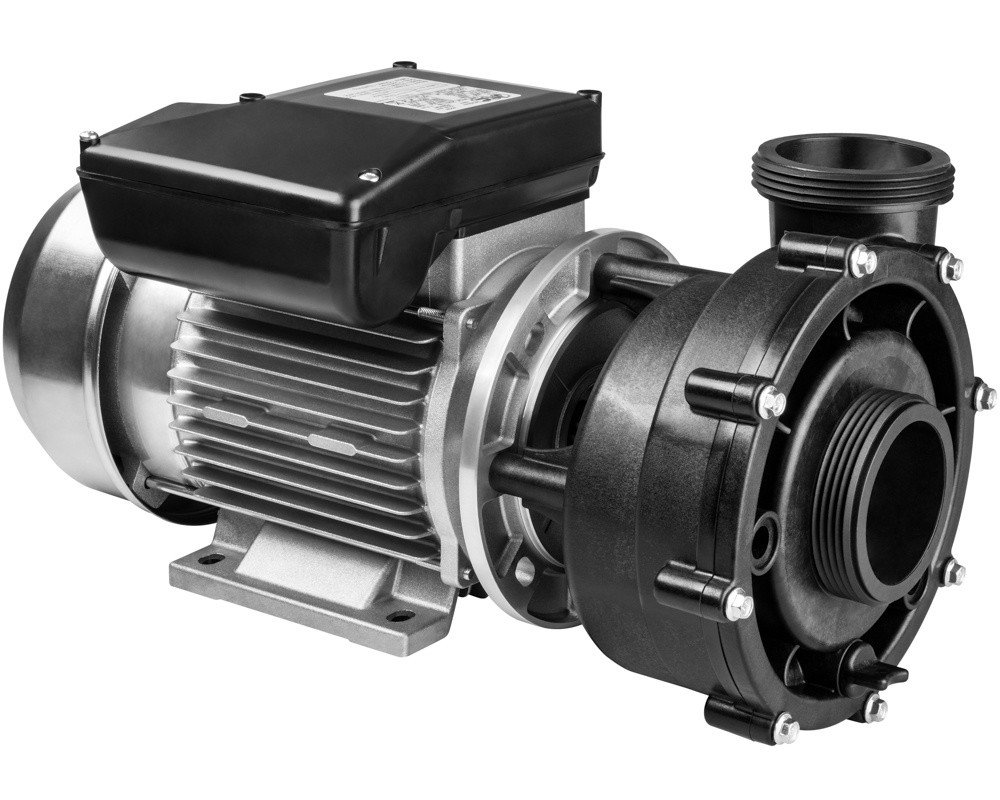

JTC PCF230 TS, 3.0hk, 2 växlar (2x2)

Pumps from Italian manufacturer JTC can be found on many European spas. This two-speed pump has a slow speed for filtration and heating, and a fast speed that runs the massage jets.

We also stock other JTC two-speed pumps from the same series with motor ratings of 2.4 HP and 2.4 HP slightly more powerful, as well as the single-speed 2,96 HP and 2,9 HP models.

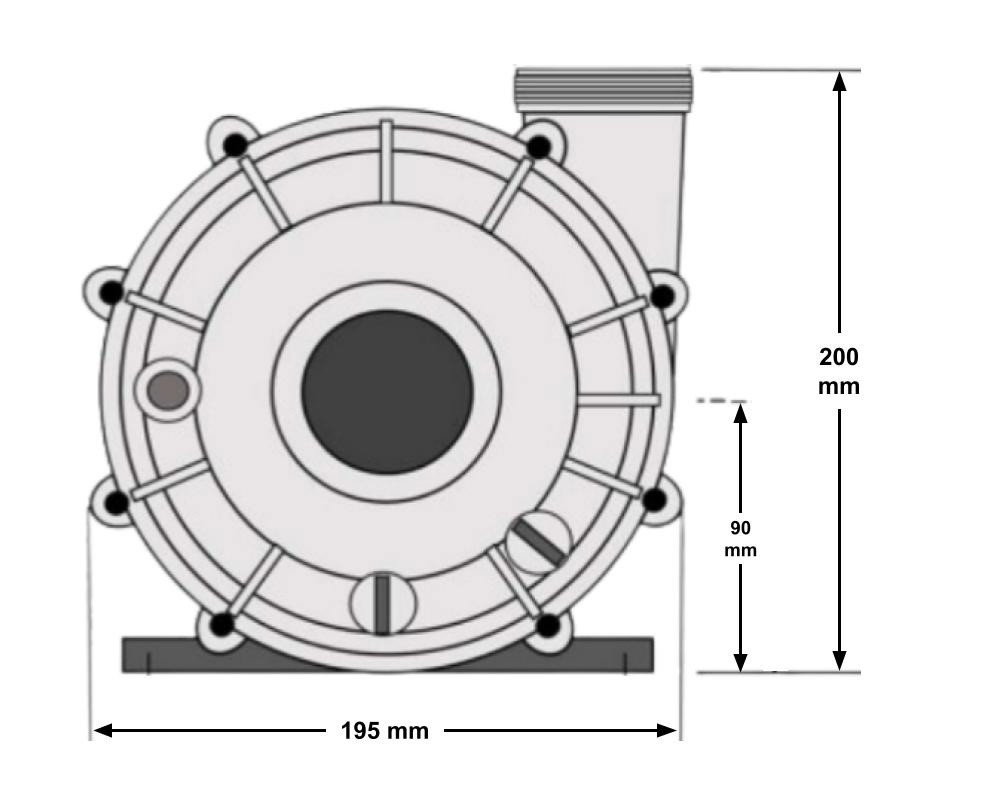

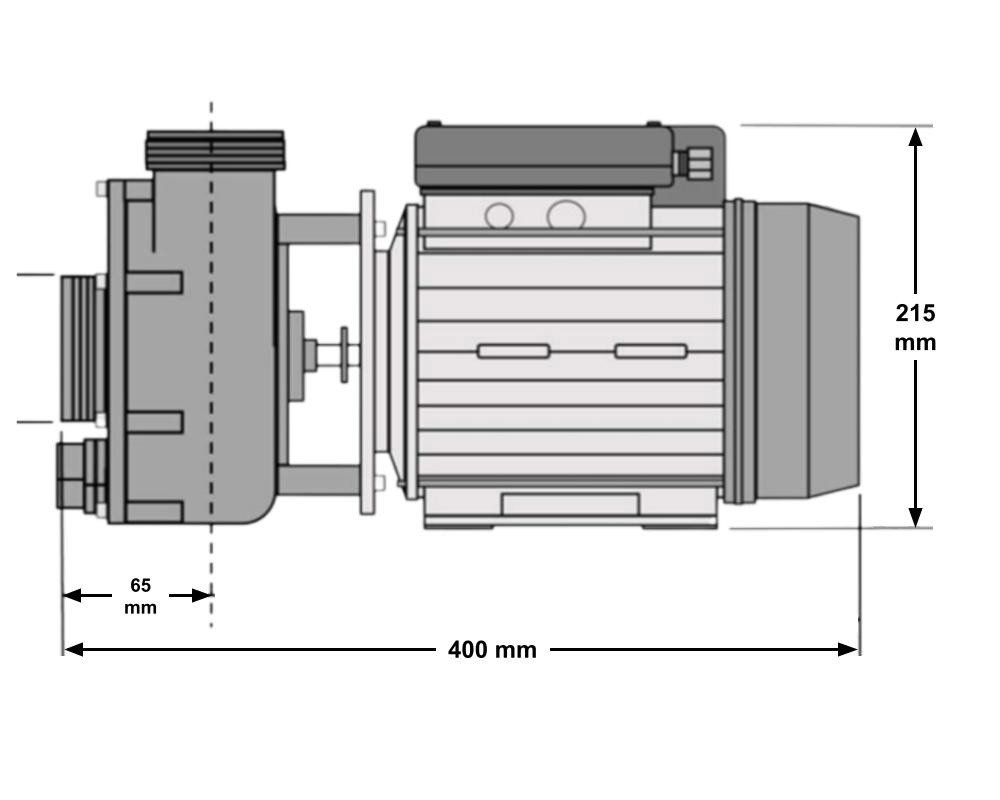

Dimensions
Length: 400 mm
Width: 195 mm
Height: 215 mm

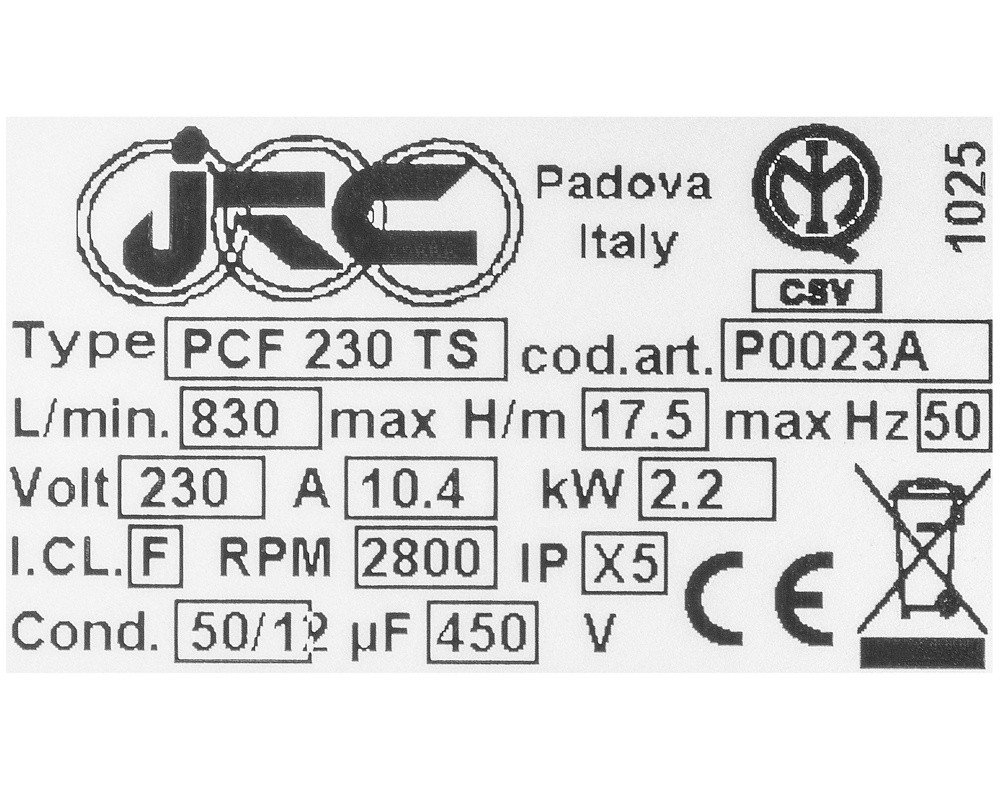

Technical specifications
Power high speed: 2,2 kW / 2,96 HP
Power low speed: 0,40 kW / 0,53 HP
Current high speed: 10,4 A
Current low speed: 2,2 A

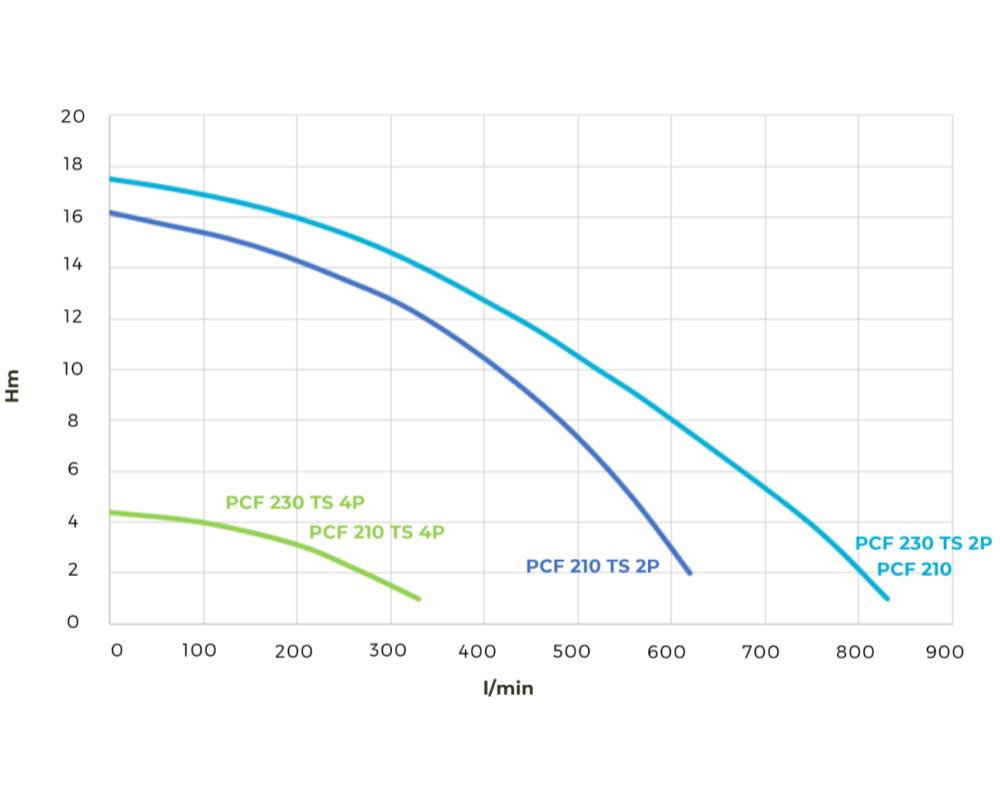

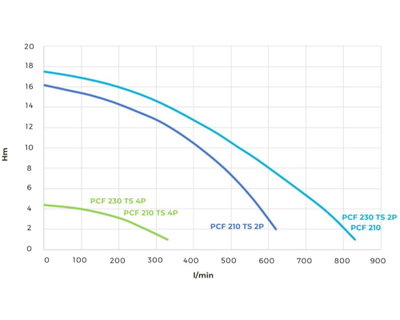

Maximum flow rate: 830 liters/minute

Connections
Outflow and intake: male threaded with a 78 mm outside diameter (2-inch MBT).
The pump unions are included. This pump is normally connected to a 2-inch pipe.

Cables and plugs
The JTC PCF230 TS two-speed pump is delivered pre-cabled without plug or with an AMP plug.

Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Warranty
2-year Tubs Parts warranty

Part numbers
JTC: PCF230 TS

Wet end orientation

Standard exit

Exit to left

Exit to right

Plug types

AMP plug

J&J plug

in.link plug
