Beskrivning av Gecko in.yt-8 control system

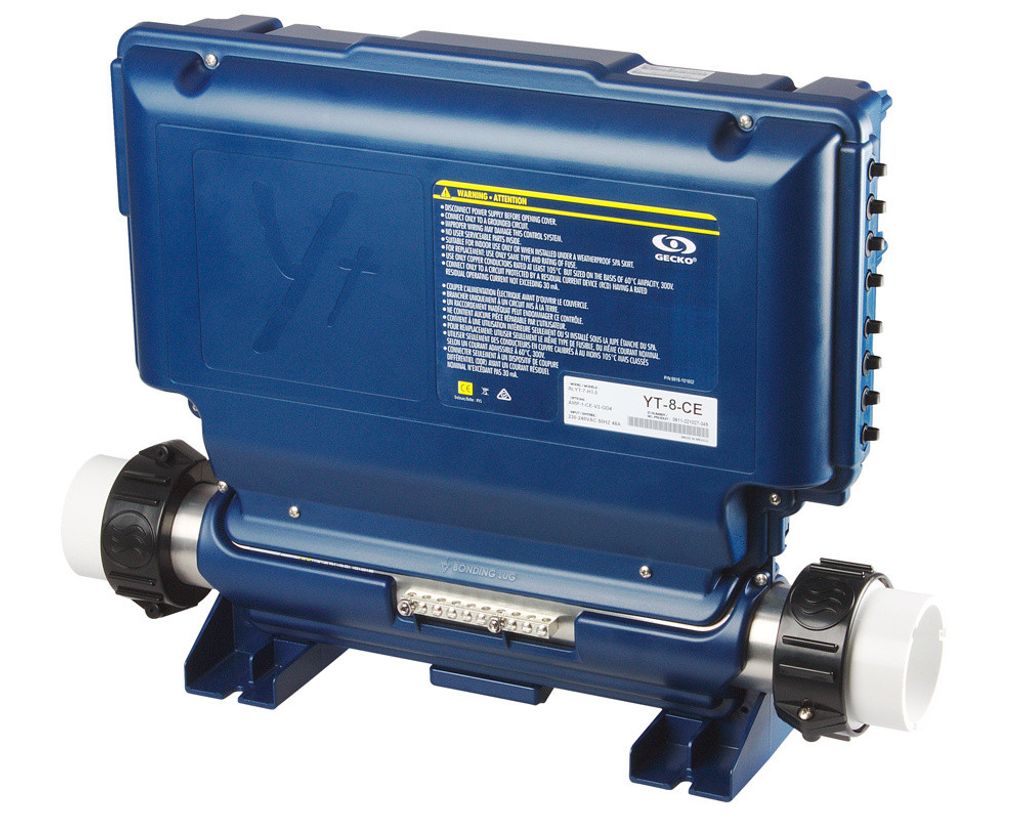

The in.yt-8 control system with integrated 3 kW heater is the most powerful version of Gecko's Y-series. With its RS-485 interface, it is compatible with the in.temp heat pump.
The in.yt-8 has 8 outputs (hence the number 8 in its name), and can therefore manage up to 8 pumps and/or blowers (bearing in mind that 2-speed pumps are classed as 2 connections). 29 different configurations are possible, ranging up to :
- 3 two-speed pumps, or 1 two-speed and 4 single-speed pumps, or 5 single-speed pumps
- a circulation pump
- an in.temp heat pump
- a blower
- an ozonator
- a lighting system
- an audio system
This system is often found in swim spas.
The configuration is made via the keypad by choosing one of the pre-recorded options. If you have any questions about the configurations, please refer to the Quick start guide, or contact us.

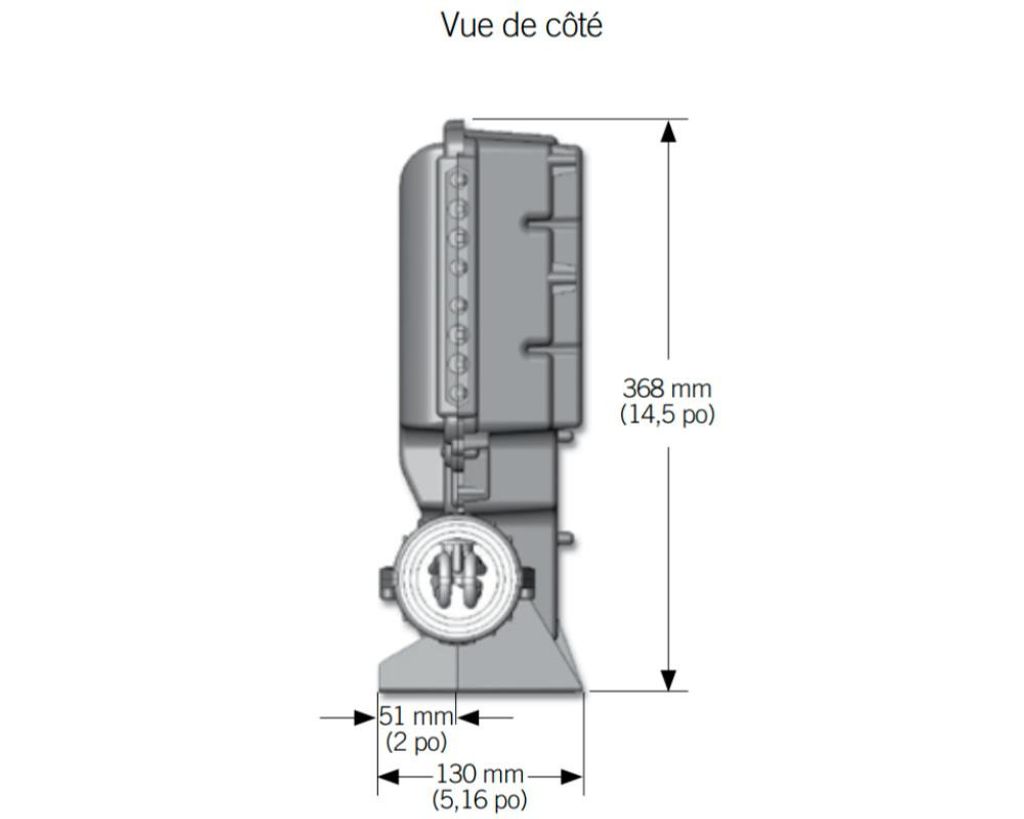

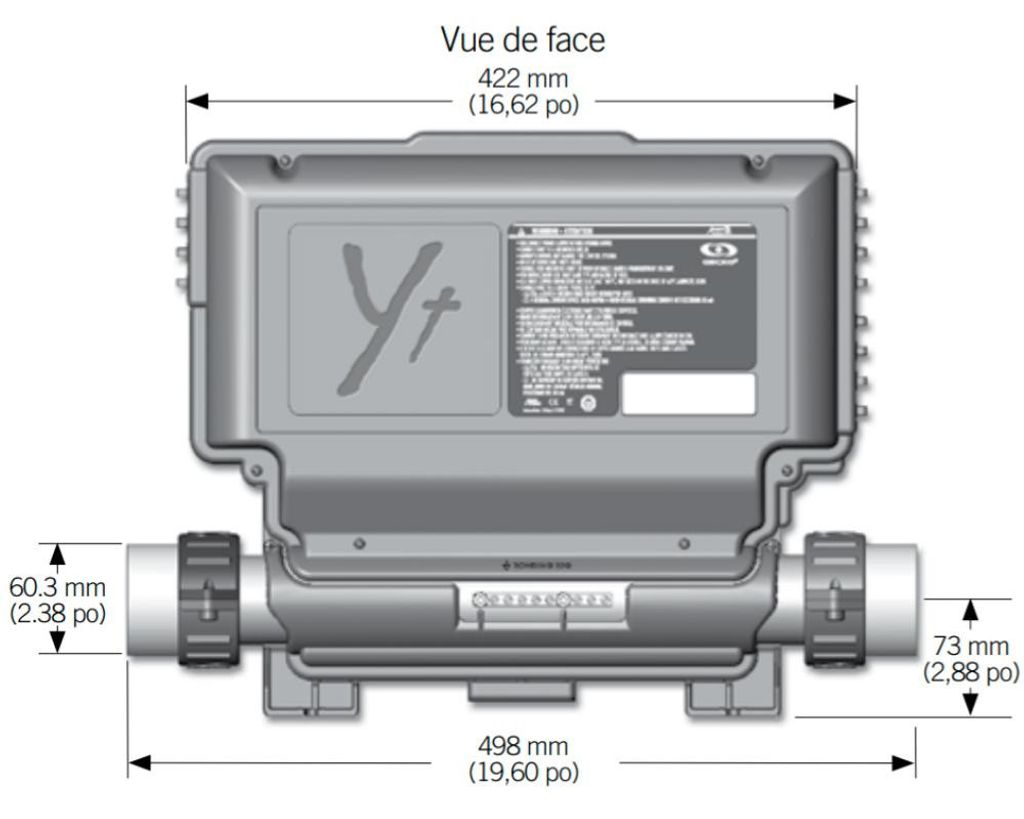

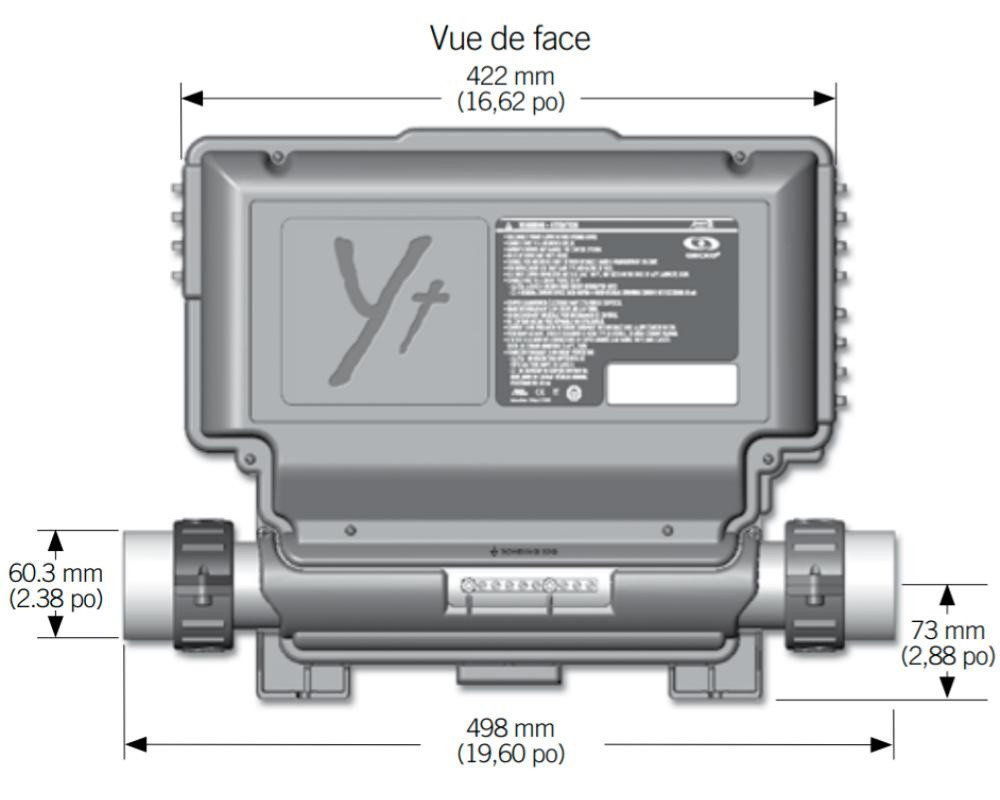

Dimensions
Box width: 422 mm
Maximum width with connections: 498 m
Height: 368 mm
Depth: 120 mm
Plumbing connections to heater: 2" (connections and o-rings included)
Technical specifications
Power supply: 230V 50Hz (1, 2 or 3 phase connections)
8 outputs at 230V AC on 4-pin AMP plugs
1 output in 12V AC for 3-pin light harness
3 outputs for in.link plugs: 1 main keypad connector and 2 communications link (in.stik, in.terface, in.touch2, in.clear, in.grid and in.stream2)
Compatible keypads
Main: in.k200, in.k300, in.k336, in.k8, in.k35, in.k450, in.k500, in.k600 (the simplified interface only), in.k800, in.k1000, in.k1001
Auxiliary: in.k120
Warranty
2-year Tubs Parts warranty
Part numbers
Gecko: 0611-221104-691
