Filter hållare med 1.5-tums SAE hon-gänga, innerdiameter 44 mm, limanslutning 2"
- Rabattkod i kassan - Villaspa ger dig 5%
- Fri frakt från 1000 kr!
- Betala med Swish, faktura eller kontokort
Liknande produkter
Beskrivning av Filter hållare med 1.5-tums SAE hon-gänga, innerdiameter 44 mm, limanslutning 2"

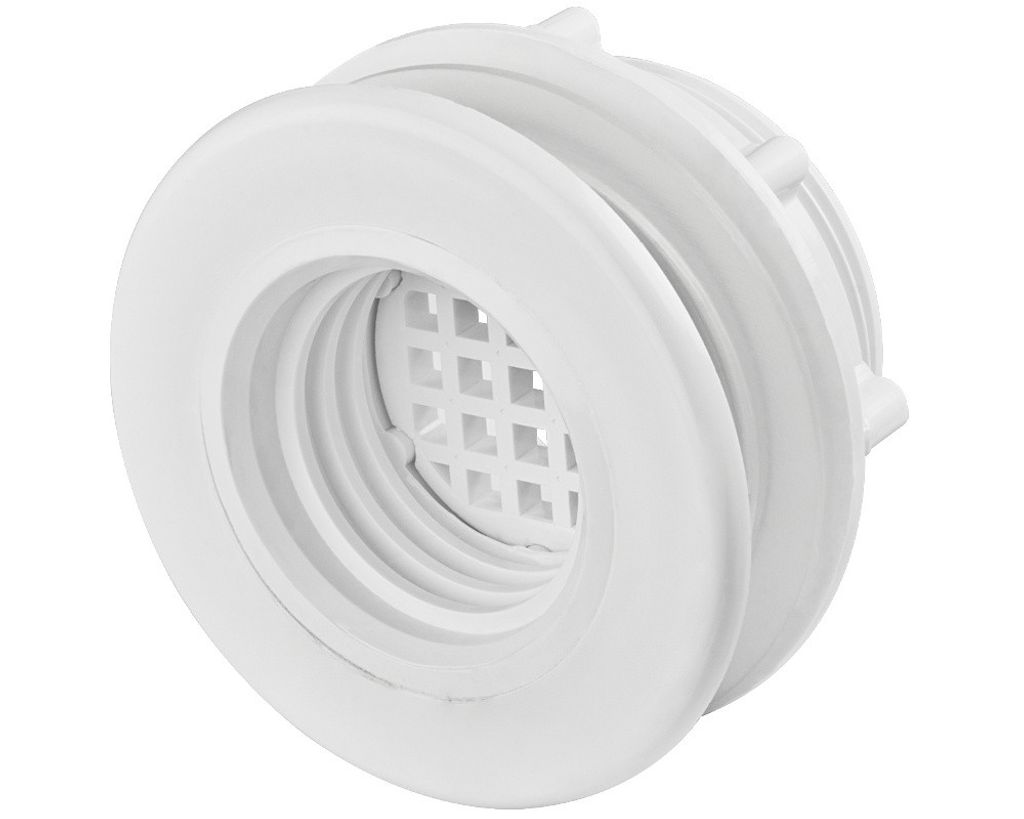

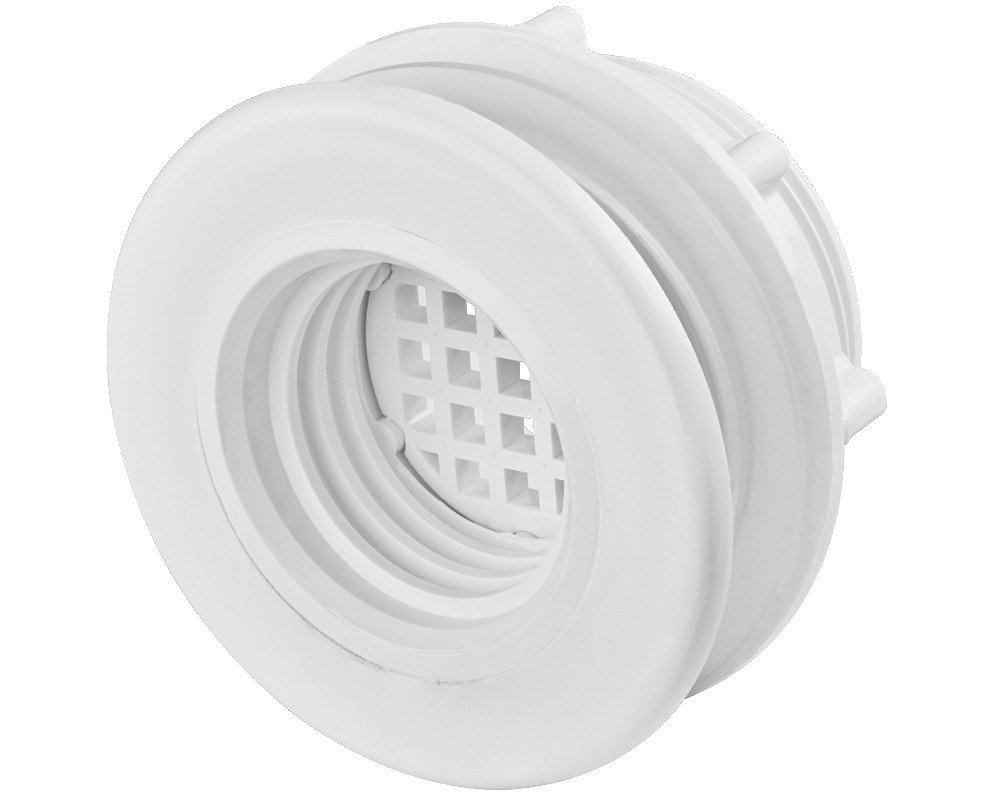

This threaded mounting point fits into the shell of your spa, and allows you to screw in any filter cartridge with a 1.5-inch SAE thread, like a PWW50, for example. You can often find this part in spas where the skimmer compartment is moulded directly into the acrylic shell. It connects to 2-inch pipe with a female fitting.
This part is delivered with a nut to hold it in place, and a flat gasket.
Dimensions
Drill diameter: 72 mm
Diameter of the face: 94 mm
Inside diameter of pipe connection: 60 mm, pour 2-inch pipe
Inside diameter of filter connection: 44 mm, for 1.5-inch SAE thread
Length: 60 mm
Waterway part numbers
Complete part including nut and gasket: 400-9030
Mounting point only: 210-9130
Nut only: 718-3170
Wellis : AKU0105
Sunrise Spas : R3045101, R3045100
